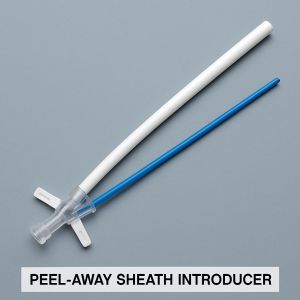

Peel-Away Sheath Introducer
A peel-away sheath introducer is a flexible medical device used primarily in vascular access procedures. It consists of a thin-walled plastic tube (the sheath) and an internal dilator that allows the sheath to be introduced into a vessel or body cavity. Once access is achieved, the sheath enables the introduction of catheters, pacemaker leads, or other devices.
What makes it unique is its “peel-away” capability: After insertion, the sheath can be split longitudinally and removed without displacing the indwelling catheter or device. This is done by pulling apart the two pre-scored halves of the sheath using small side wings or tabs.
Typical Uses
- Central venous catheter placement
- Peritoneal dialysis catheter introduction
- Temporary pacing wire insertion
- Electrophysiology procedures
A ventriculoatrial shunt (VAS) proves to be an excellent alternative in the hydrocephalus treatment. Its usage is a viable option when ventriculoperitoneal shunt (VPS) is contraindicated in any age of patients.
A report highlights a successful case involving a 6-month-old patient who underwent VAS catheter positioning. The child presented with hydrocephalus and biliary atresia, making him a candidate for a liver transplant. Notably, a VPS was considered a relative contraindication in this scenario.
The VAS emerges as a viable option for patients in whom a VPS might be contraindicated. This case demonstrates the successful application of a VAS in a pediatric patient 1).
Not Designed For
- Brain surgery
- Structural tissue retraction
- Intracranial trajectory control
Synonyms
- Splittable introducer sheath
- Tear-away sheath
- Disposable vascular sheath
Reference Example
Common sizes: 7F to 24F
Materials: Medical-grade polyurethane or PTFE
Sterile, single-use
Often included in vascular access kits
Technical note and retrospective case series
In a technical note and retrospective case series Siomin et al. 2) propose a low-cost, minimally invasive technique for resecting deep-seated brain lesions using a 19F peel-away sheath introducer and so-called “dynamic” retraction.
🚨 Conceptual Weaknesses
- Improvised Device Misuse:
The 19F peel-away sheath is a vascular introducer, not a neurosurgical retractor. Its intraaxial use is unsafe and non-validated, and its deployment in delicate brain regions borders on reckless.
- “Dynamic Retraction” = Euphemism:
This term conceals the absence of trajectory control or stable visualization. Manual dynamic retraction lacks the biomechanical integrity of dedicated MIS systems, increasing the risk of cortical and subcortical injury.
📉 Methodological Flaws
- Small, Heterogeneous Cohort:
Combining diverse pathologies (GBM, metastases, cysts) in one case series prevents any meaningful extrapolation. The sample is too small to reach safety or efficacy conclusions.
- No Objective Outcomes:
Gross total resection is claimed without imaging confirmation protocols. Functional outcomes are anecdotal. No mention of validated scales (e.g., mRS, KPS, RANO).
- No Comparator Arm:
Without parallel use of standard tubular retractors or image-guided MIS systems, claims of equivalence or superiority are speculative at best.
- No Real Cost Analysis:
“Cost-effective” is asserted without breakdowns of device pricing, hospital stay, complication management, or reinterventions.
🎭 Academic Theater
- Performative Minimalism:
The procedure is labeled “minimally invasive,” yet lacks essential MIS elements: rigid tubular control, navigated access, and standardized closure techniques.
- Marketing Disguised as Science:
The article has the tone of a promotional piece rather than an objective technical report. It risks encouraging substandard neurosurgery in low-resource settings.
💬 Final Judgment
This publication represents a dangerous oversimplification of MIS principles. Far from offering a viable alternative, it undermines surgical safety in favor of expediency. The technique should not be adopted without rigorous validation and biomechanical studies.
Recommendation
'Do not recommend for clinical adoption.
'
'Further research required with ethical oversight, controls, and functional imaging.
'
